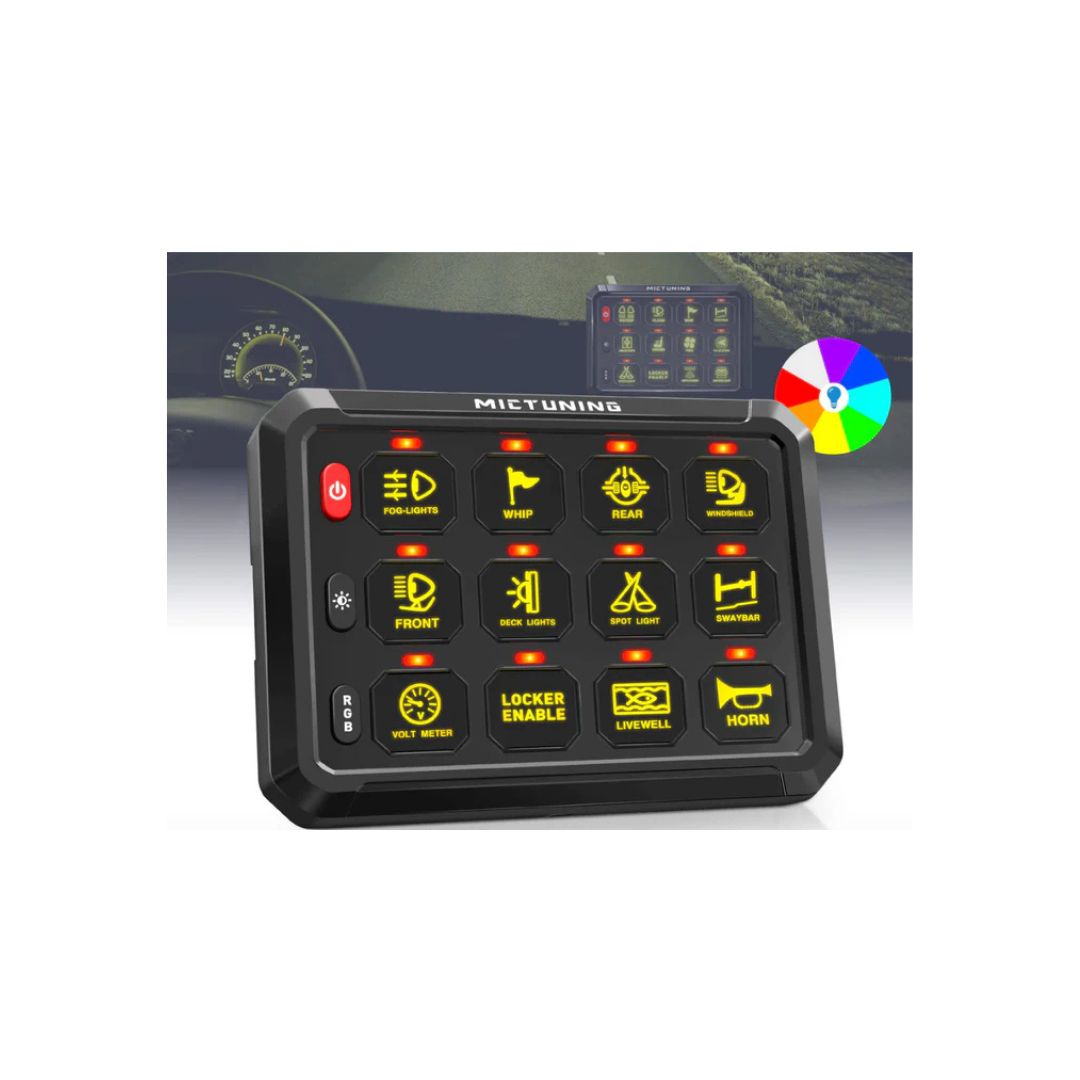

P1s RGB 12 Gang 5" Switch Panel, High Power 5-Level Brightness, Multifunction Touch Toggle Switch

• MARKET-LEADING 3 SILICONE BUTTONS - MICTUNING RGB 5 Inch Switch Panel UPGRADED with 3 silicone button for more convenient and functionality operation, include ON/OFF switch with memory function, Brightness Adjustment Button, RGB Color Adjustment Button. The Silicone Button not only allows for blind operation, but also enhance hand feel.
• ACC OR BATTERY WIRING WAY - P1s RGB Switch Panel has 2 wiring methods for option: Connect ACC or Battery. The control box with push switch to freely switch ACC or battery power, simple easy and safe power connection. Toggle switch panel also offer 2 types of mounting: Vertical or Horizontal installation, you can install the control box and switch panel according to your needs.
• 11 RGB COLORS & 5-LEVEL BRIGHTNESS - Upgrade more backlit colors to match your vehicle and brighten your mood. Short press "RGB" button to switch 8 single color(red orange yellow green cyan blue purple white), and long press to switch between Gradient/ Jump/ Breathing. Also, there are 5-level brightness adjustment (100%, 75%, 50%, 25%, 10%), offer you most comfortable visual brightness while driving.
• 5'' STURDY SWITCH PANEL MORE STABLE - The control panel increase 20% size, with large current and greater stability, safe to use.  12 Gang Switch Panel: Rated at 960W/12V, 1920W/24V, Maximum Current: 80A,(8 Gang Switch Panel: Rated at 720W/12V,1440W/24V, Maximum Current: 60A) Operating Temperature: - 40°C ~ + 105°C, IP65 waterproof rate. Aluminum alloy housing with sturdy iron bracket for long service time. Bonus 5 fuses included to well protect your car circuit.
• NEAT AND CLEAR WIRING - Rocker switch with a Circuit Control Relay System, which help to clean up all wiring harness. Bonus 140pcs labeling stickers included for DIY your specific need. Suitable for RV, 12V-24V DC marine, car, truck, off-road, ATV/UTV, boat, yachts, Caravans, etc.
• POSITIVE OUTPUT PANEL - This is a positive output switch panel that supports common cathodes, It means the negative wire can be connected to the negative terminal of control box, battery and car, which simplifies the wiring.

Specification:

• Voltage: 12V-24V DC
• Power: 12 Gang: 960W/12V, 1920W/24V; 8 Gang: 720W/12V, 1440W/24V
• Maximum Current: 12 Gang: 80A; 8 Gang: 60A
• Operating Temperature: - 40°C ~ + 105°C

Package Included:

• 1X 6/8/12 GANG SWITCH PANEL
• 1X CIRCUIT CONTROL BOX
• 5X MOUNTING BRACKETS
• 140X SWITCH LABELS
• 1X 100A CIRCUIT BREAKER
• INSTRUCTION
• 3X WIRING HARNESS
• CABLE TIES
• SCREW
• 5 FUSES, INCLUDING 2X 30A, 1X 20A, 1X 15A, AND 1X 10A
