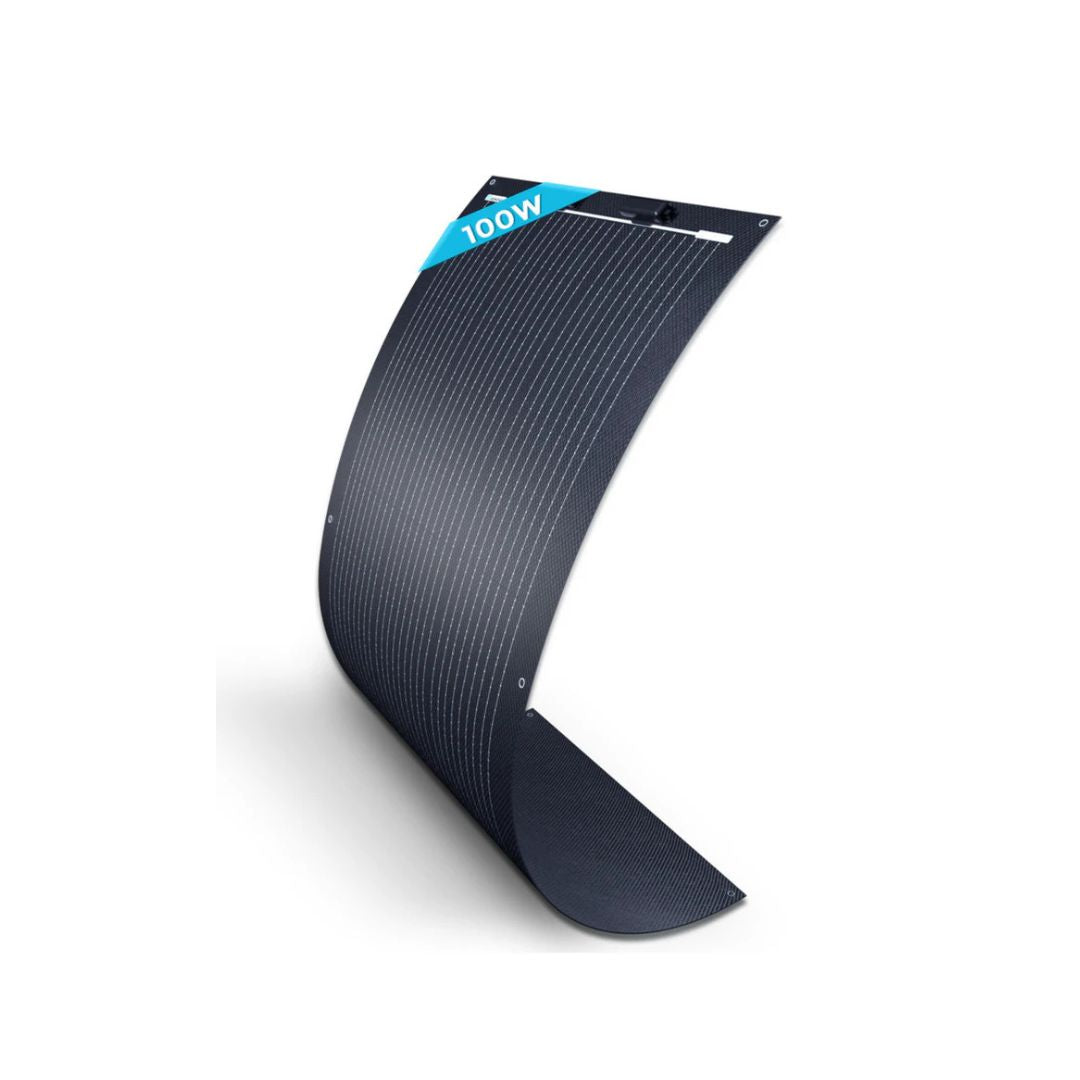

100W flexible Monocrystalline black Solar Panel
Output Cables: 14 AWG (1.96ft long)
Junction Box: IP65
Solar Connectors: IP67
Maximum Power at STC: 100W
Cell Efficiency: 22.00%
Optimum Operating Voltage (Vmp): 20.3V
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Current (Imp): 4.93A
Short-Circuit Current (Isc): 5.39A
Operating Temperature: -40°F to 194°F
Maximum Series Fuse Rating: 15A
Certifications: CE, ISO
Maximum System Voltage: 600V DC (UL)
Weight: 14.5lbs/6.5kg

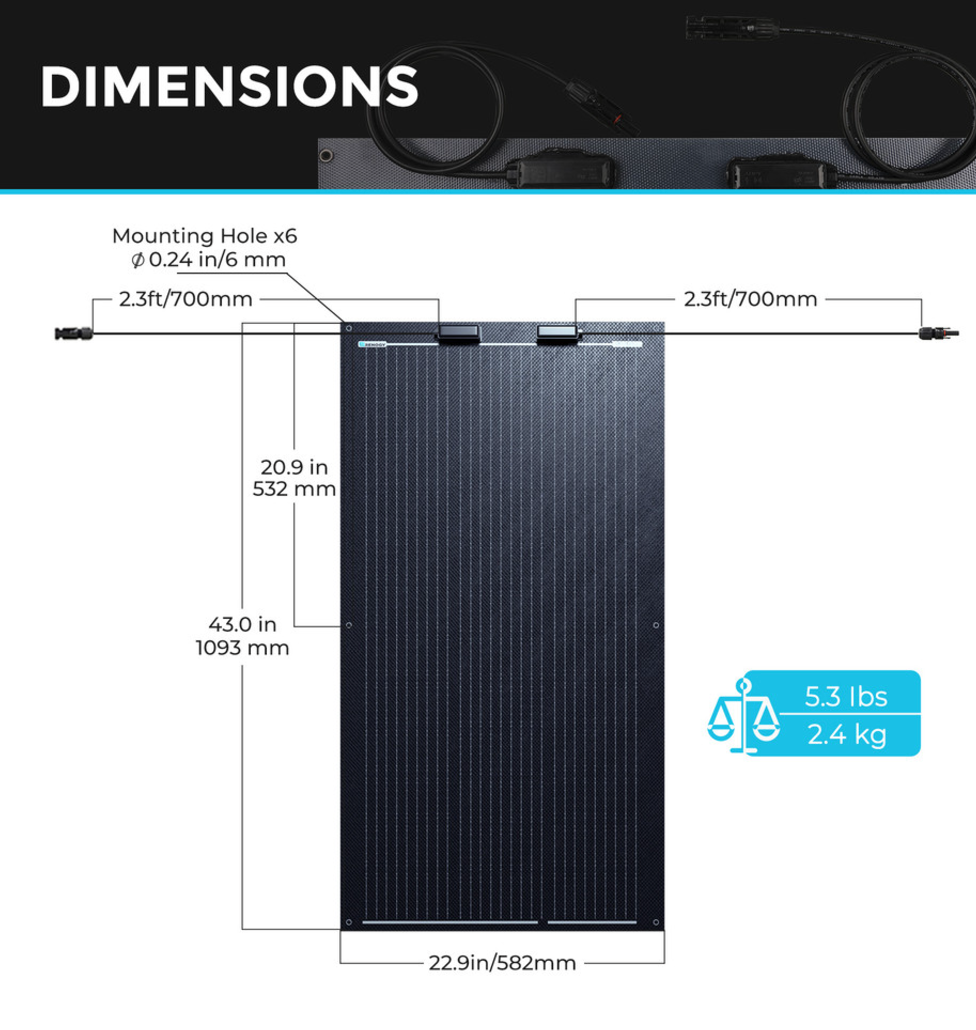

Dimensions: 43.3 x 20.0 x1.38 in
Panel Leads (Pair): 14 AWG (1.96 ft)
The Renogy Black Division 100W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.
It works with most curved surfaces as it can be bent within 240 degrees.
Presenting an all-black glare-free appearance.
This Renogy Solar Panel can provide an average of 500 Watt-hours of electricity per day (depending on sun availability).
It offers 5-year material and workmanship warranty and has passed the CE test.
This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load.
Provide excellent durability in a harsh environment.
When there is no sun exposure, the diode prevents reverse current flow from the battery to the solar panels, to avoid current damage to your solar panels.
This Renogy solar panel comes with pre-drilled holes for quick installation. Besides, it can also be bonded to the surface by using silicone adhesive or velcro.
The solar connector cables are 2.3 feet long without worrying about length limitations.
The IP67 rated waterproof junction box and solar connectors ensure that water and dust will not enter during extended outdoor use.
Cables attached on the back with Solar Connectors are ready for connection and extension.
