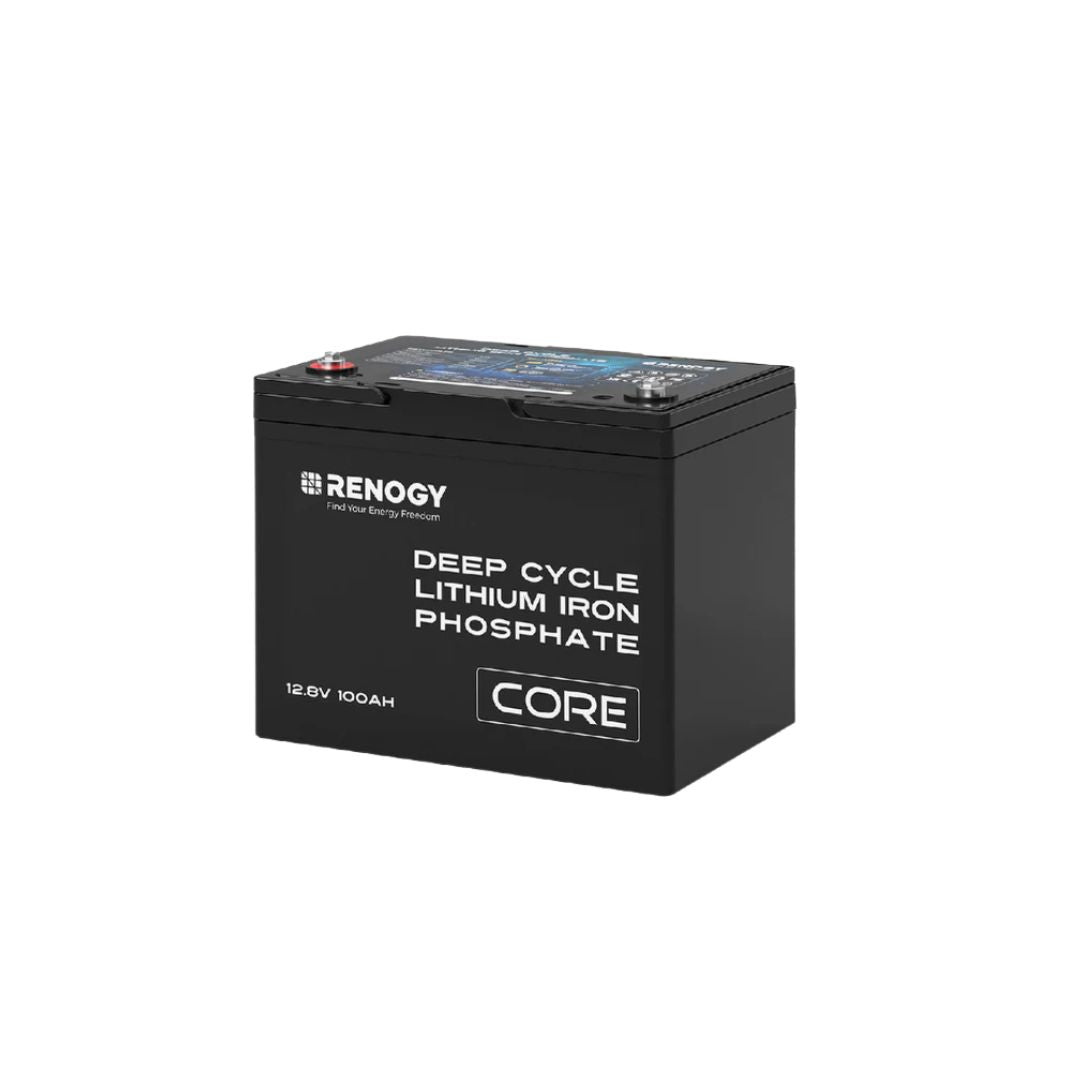

Renogy 12V 100Ah Core Series LiFePO4 Battery
100Ah Core vs. Lead-acid
Upgrade to lithium for the next-level performance
100Ah Core vs. Other LiFePO4
Unparalleled performance for demanding energy needs
Extra Juice. More Possibilities.
Renogy 12V 100Ah Core delivers more than you imagine. Get max. 6% more capacity to brace for the unexpected storms, hurricane, wildfire, and other challenges whenever you need.
Powerful to the Core
Offering you consistent power that is almost 10 times longer than an average lead-acid battery, Renogy 12V 100Ah Core LiFePO4 Battery features ev-grade battery cells to ensure lasting performance.
Year-round Protections
The built-in 100A battery management system (BMS) brings you peace of mind for all-year-round use. The low-temperature cut off actively prevents your battery from charging when the mercury plunges below 32°F.
Protections Against Bumps
We know that it always takes a bumpy ride before arriving at your dream destination. With that in mind, the battery comes with a rugged structural design to protect components from bumping up and down on the road.

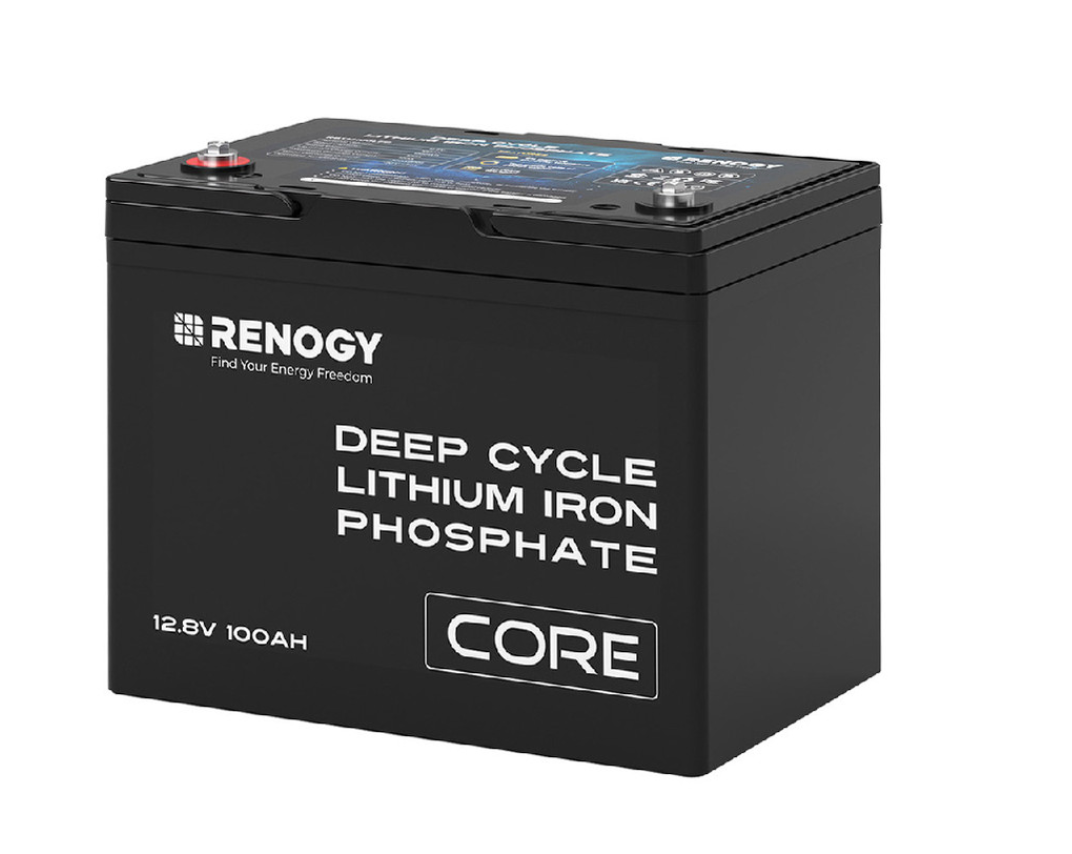

Renogy 12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery
Electrical Specifications
Battery Type: Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C): 100Ah
Voltage: 12V
Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Charge Voltage: 14.4V
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)
Connection Method: "Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)"
Communication Protocol: N/A
Recommended Terminal Torque: 10 N·m
Protection Rating: IP65
Housing Material: ABS
Terminal Bolt Size: M8
Dimensions: 10.24 x 6.65 x 8.31 in (260 x 169 x 211 mm)
Weight: 23.15 lbs. (10.5 kg)
opc:
Accessories
Long Terminal Bolts (2): M8
opc:
Certifications
MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES
opc:
Warranty
Material and Workmanship Warranty: 3 Years
