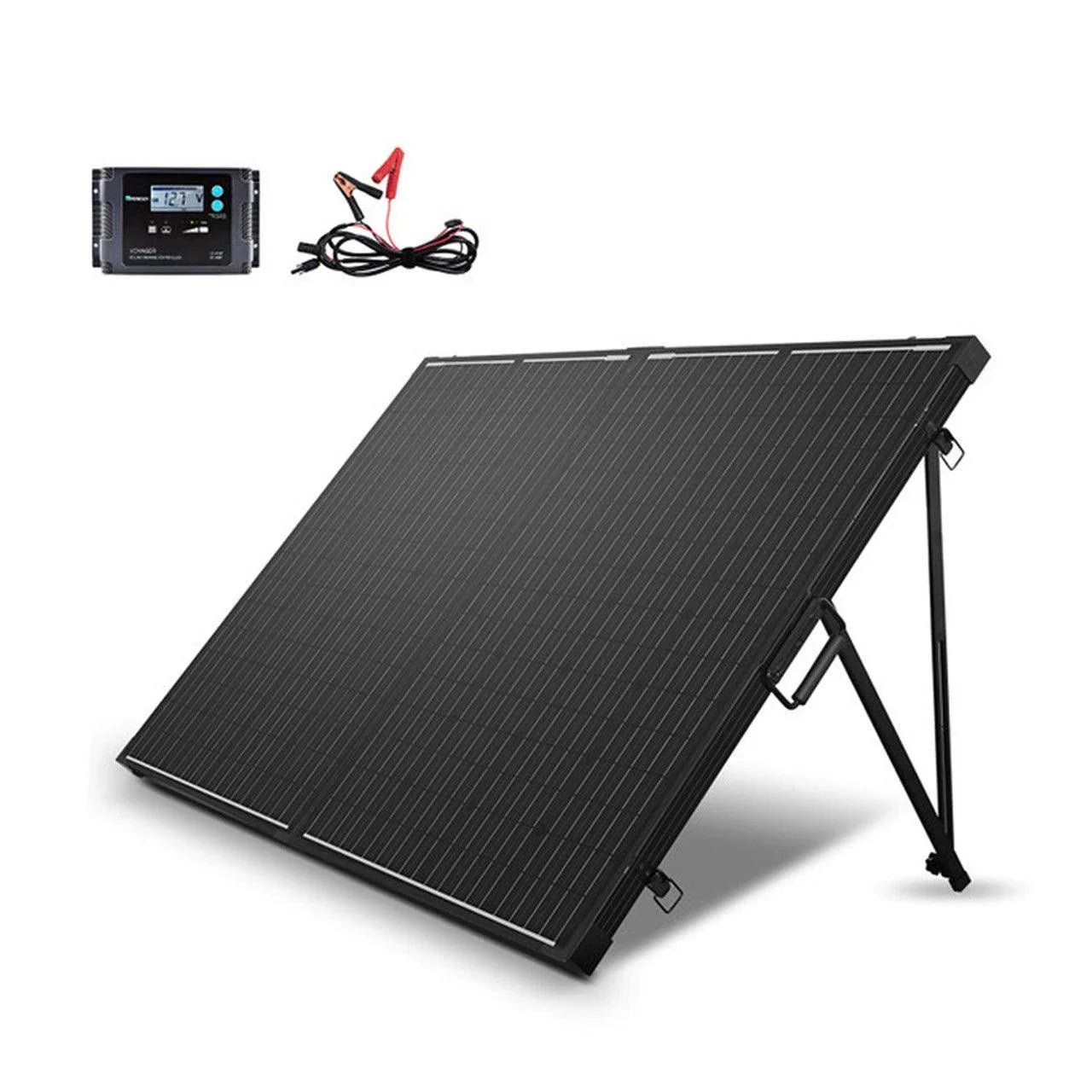

200 Watt 12 Volt Monocrystalline Foldable Solar Suitcase

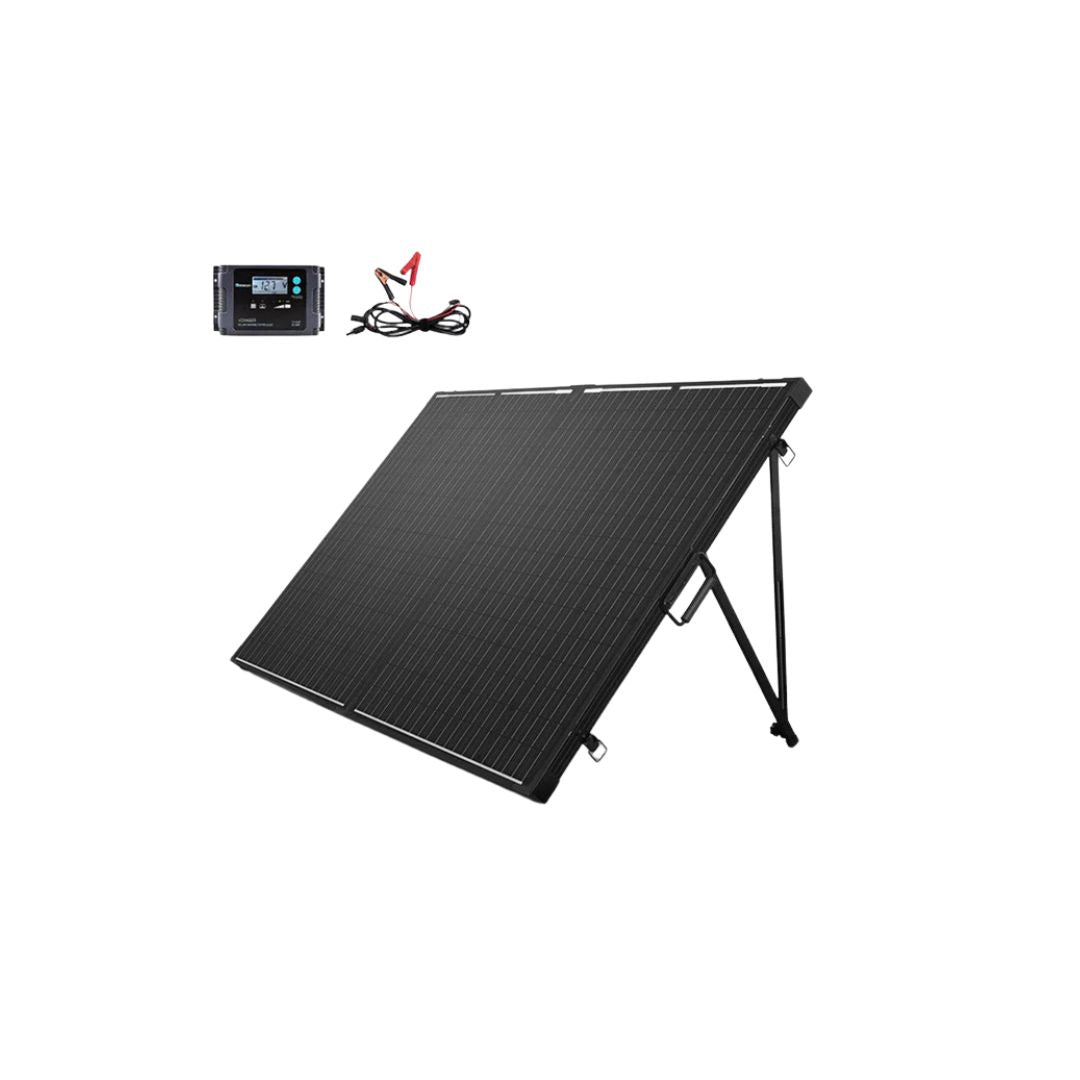

The Renogy 200W solar suitcase kit is perfect for outdoor adventures or as backup power for your home and cabin, providing you both flexibility and dependability power with no need to rely on the grid. This kit includes two 100w Monocrystalline solar panels which are able to provide ideal 1KWH power per day, one 20A Voyager Charge Controller able to work with multiple battery types, one 9.9ft tray cable with alligator clips and one protective case for safe portability.
The Renogy solar panels use Grade A+ solar cells,multi-layered sheet laminations enhance cell performance and provide a long service life.
This kit comes with alligator clips, allowing you to use the easiest way to connect the Voyager charge controller to multiple battery types, ideal for a mobile system looking for flexibility.
Folding design smaller in size, allows the suitcase can be easy to carry around, or stored in any gap in your RV or van without taking much space.
With utilizing smart PWM technology, the Voyager controller provides efficient, stable, and safe charging.Multiple protection keeping your battery and system fully protected.
Adjustable kickstands are easy to set up and allow you to get the best sunshine only need to change in small angles, ensuring you always get enough energy. Empower your outdoor adventures with more flexibility and possibility.
Bypass Diodes installed inside the junction boxes minimize power drop caused by shade ensure excellent performance in low-light environments and avoid the effects caused by hot spots, ensure product safety during use.
Maximum Power at STC: 200W
Cell Efficiency: 22.5%
Open Circuit Voltage(Voc): 24.3V
Short Circuit Current (Isc): 10.42A
Maximum Power Voltage (Vmp): 20.4V
Maximum Power Current (Imp): 9.82A
Operating Temperature: -40℉ to +185℉
Net Weight: 34.4 lbs

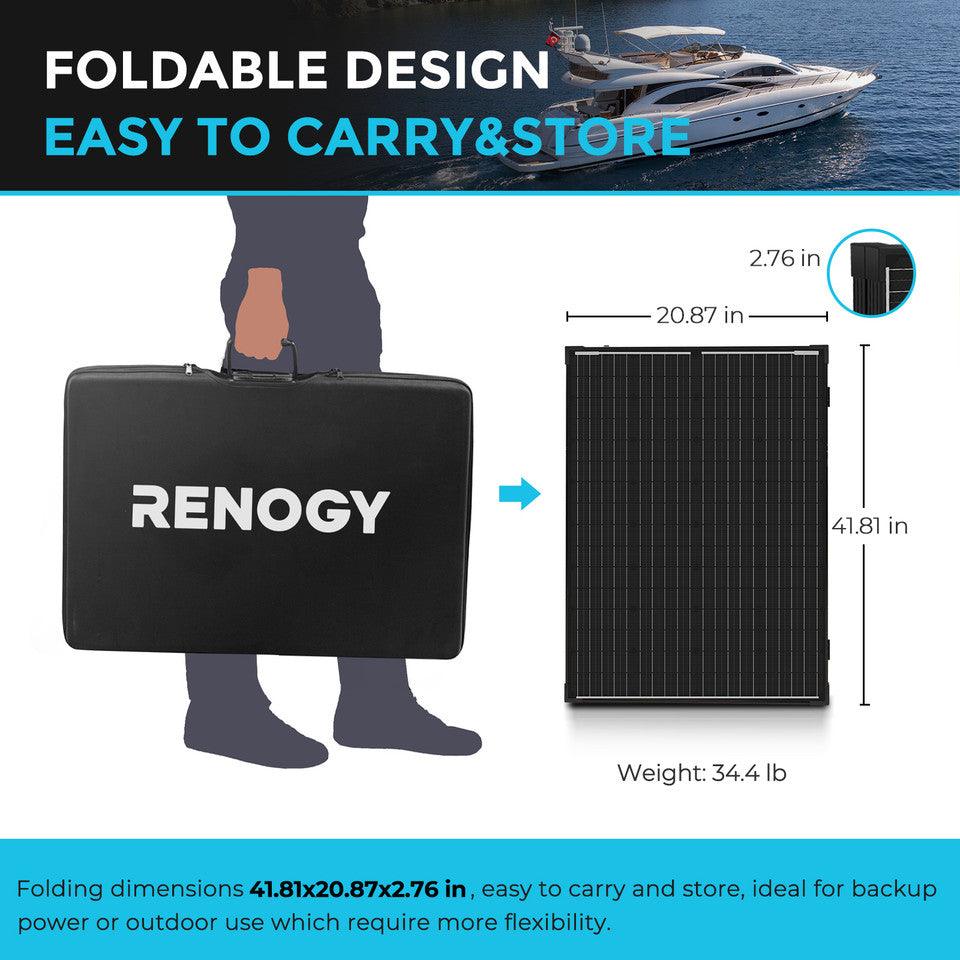

Folded Dimension: 41.8 x 20.9 x 2.8 inches
Material and workmanship warranty: 5 years
Performance Warranty: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
opc:
Nominal Voltage: 12 VDC
Self-consumption: ≤8mA
Rated Charge Current: 20A
Operating Temperature: -40°F to 140°F
Max. PV Input Voltage: 26 VDC
Grounding: Common Negative
Weight: 0.88 lbs
