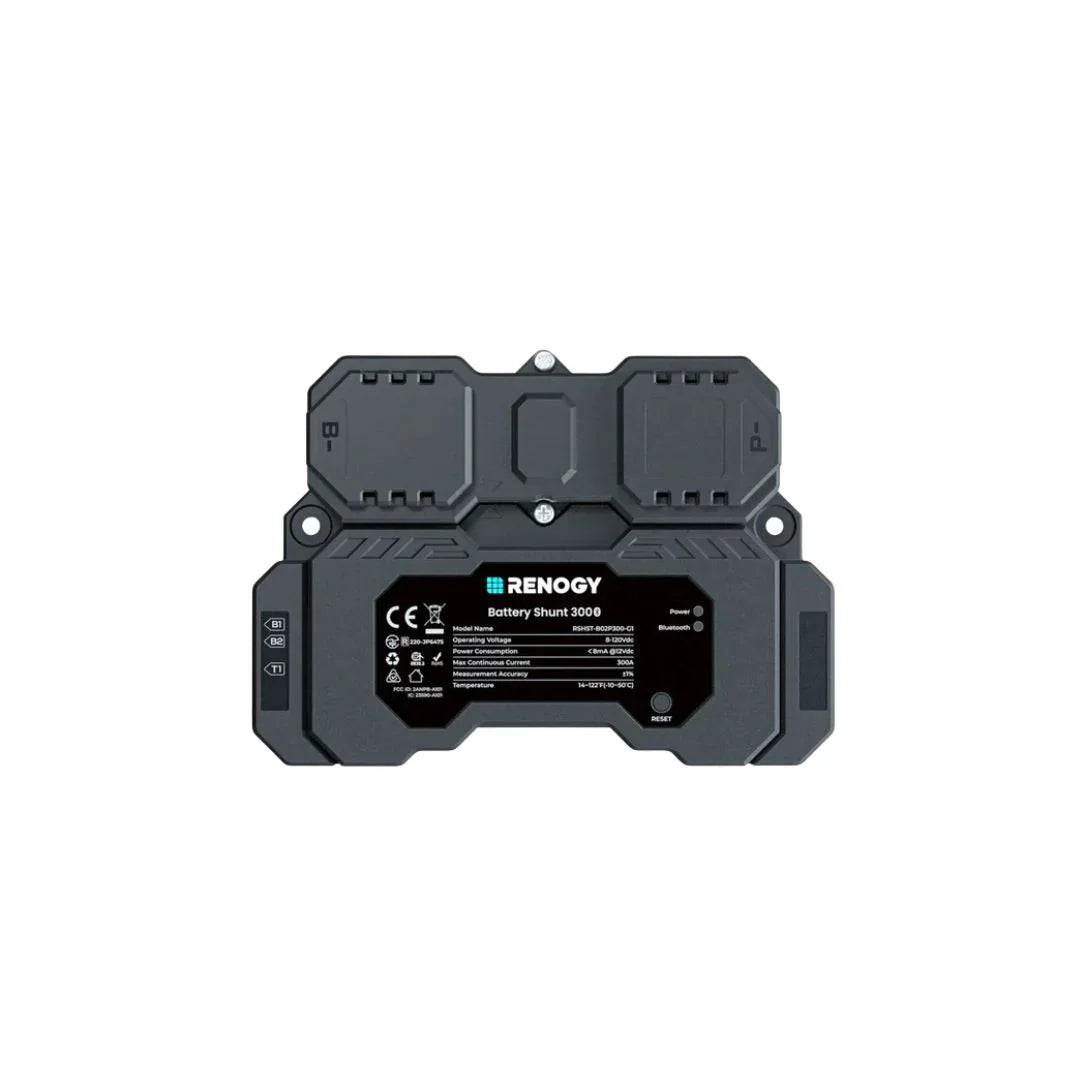

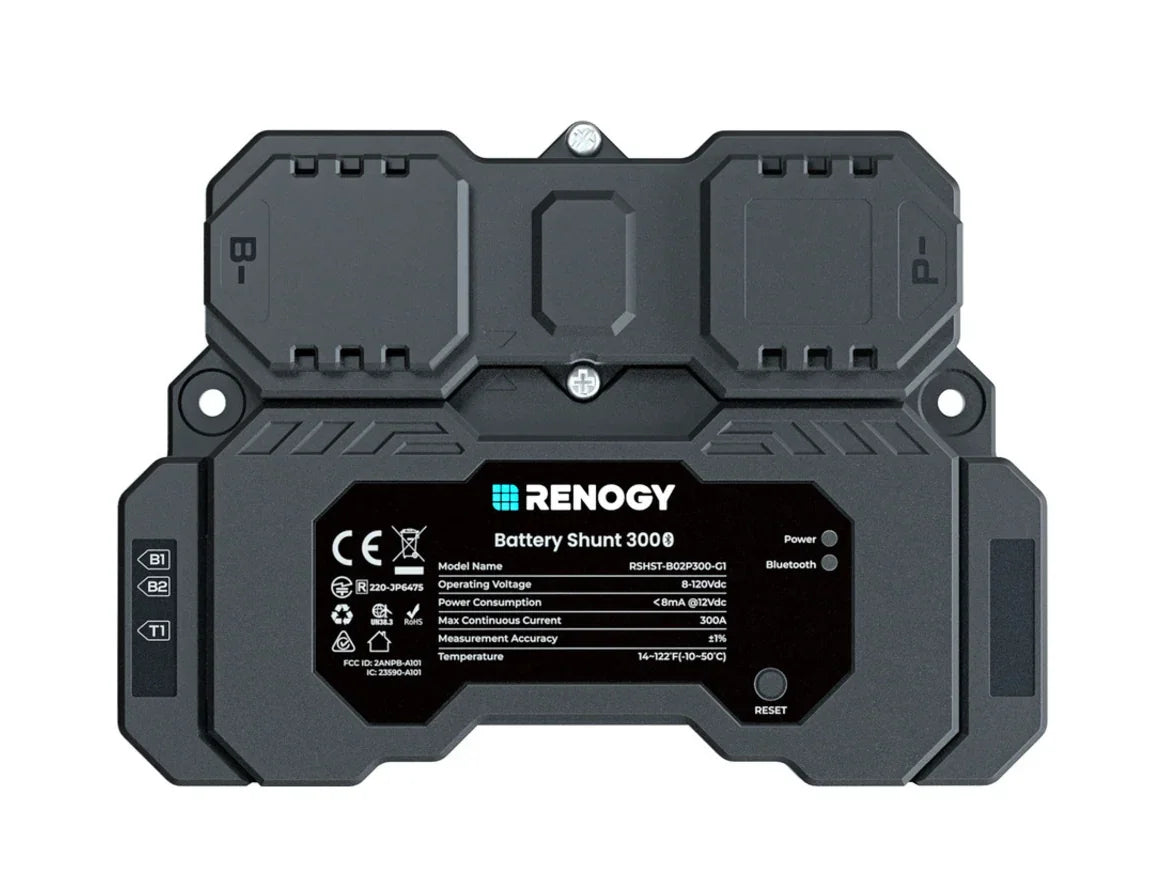

Battery Shunt 300 with Bluetooth
The Specs
Battery Shunt 300
ELECTRICAL DATA
Power Supply: 8 - 120 VDC
Power Consumption: <0.1 W
Communication: Bluetooth LE and BLE Mesh
Max continuous current: 300A
Max peak current: 500A(<10s)
Current accuracy: ±1%
Current Resolution: 0.01 A
Battery Capacity: 1 - 6500Ah
Voltage Input Range: 8V to 120V DC
Voltage input resolution: 10 mV
Temperature sensor range: -20~80℃
Temperature sensor accuracy: ±1%
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 2000m above sea level
Installation: Surface mounting
Battery connection: M10 bolts
Weight: 0.57lb (260g )
Dimensions: 5.27 x 3.82 x 1.22 inch (134 x 97 x 31 mm)
Warranty: 1 year
Certifications: CE, FCC ID,IC ID,RCM,TSCA, RoHS,UN38.3,TELEC
Check Your Battery Charging Level Anytime Anywhere
Ensures precise battery monitoring via the Renogy ONE Core and DC Home App.
Track Battery Data Performance Over Time.
In addition to real-time data monitoring, the battery Shunt 300 also helps record historical data via Renogy ONE Core and DC Home App, allowing you to make reasonable decisions about your entire power system.
Battery Shunt 300 with Bluetooth
