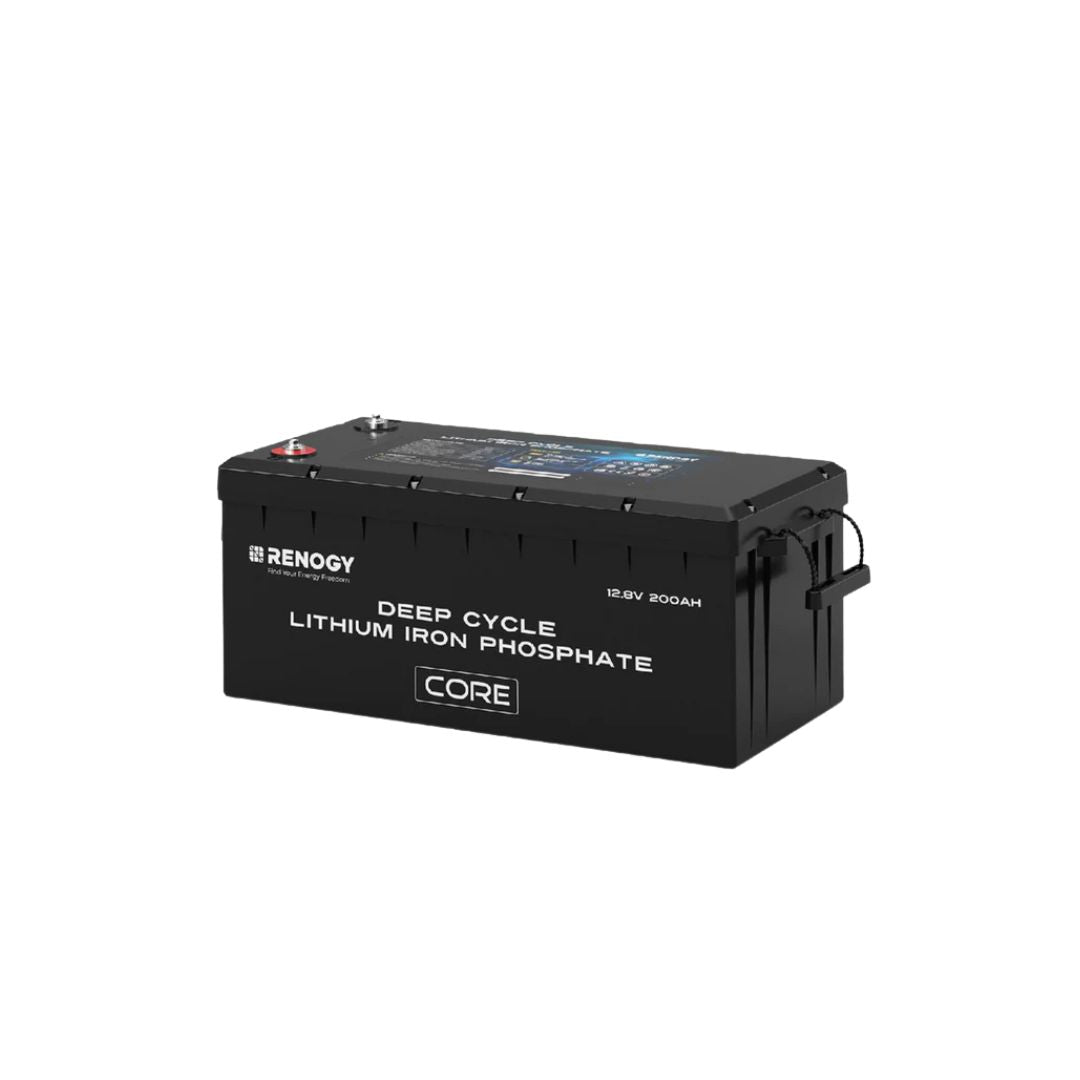

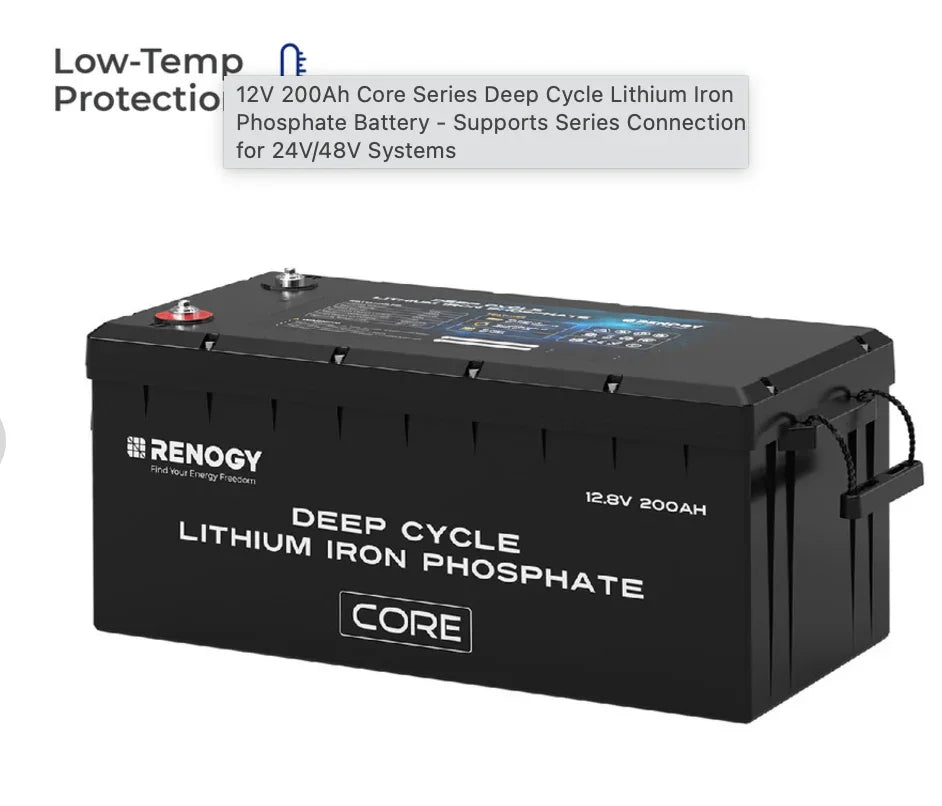

Deep Cycle 12V 200Ah Core lithium battery

Rated Capacity (0.5C, 25°C): 200Ah

Voltage: 12V

Energy: 2560Wh

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Voltage: 14.4V

Maximum Continuous Charge Current: 100A

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 400A@10s

Operation Temperature Range: Charge: 32°F to 131°F / 0°C to 55°C Discharge: -4°F to 140°F / -20°C to 60°C

Storage Temperature Range: -13°F to 149°F / -25°C to 65°C

Operation Relative Humidity: 10% to 95%

opc:

Dimension (L x W x H): 20.55 x 9.45 x 8.62 in / 522 x 240 x 219 mm

Weight: 47.3 lbs. / 21.45 kg

Terminal Bolt Size: M8 x 1.25 x 15 mm

Protection Rating: IP65

Long Terminal Bolts (2): M8

opc:

MSDS, UN38.3, FCC, PSE, CE, UKCA, IEC62619: YES

opc:

Material and Workmanship Warranty: 3 Years

Renogy 12V 200Ah Core Series LiFePO4 Battery

Your trusted, one-stop upgrade from lead-acid to 200Ah lithium is here.

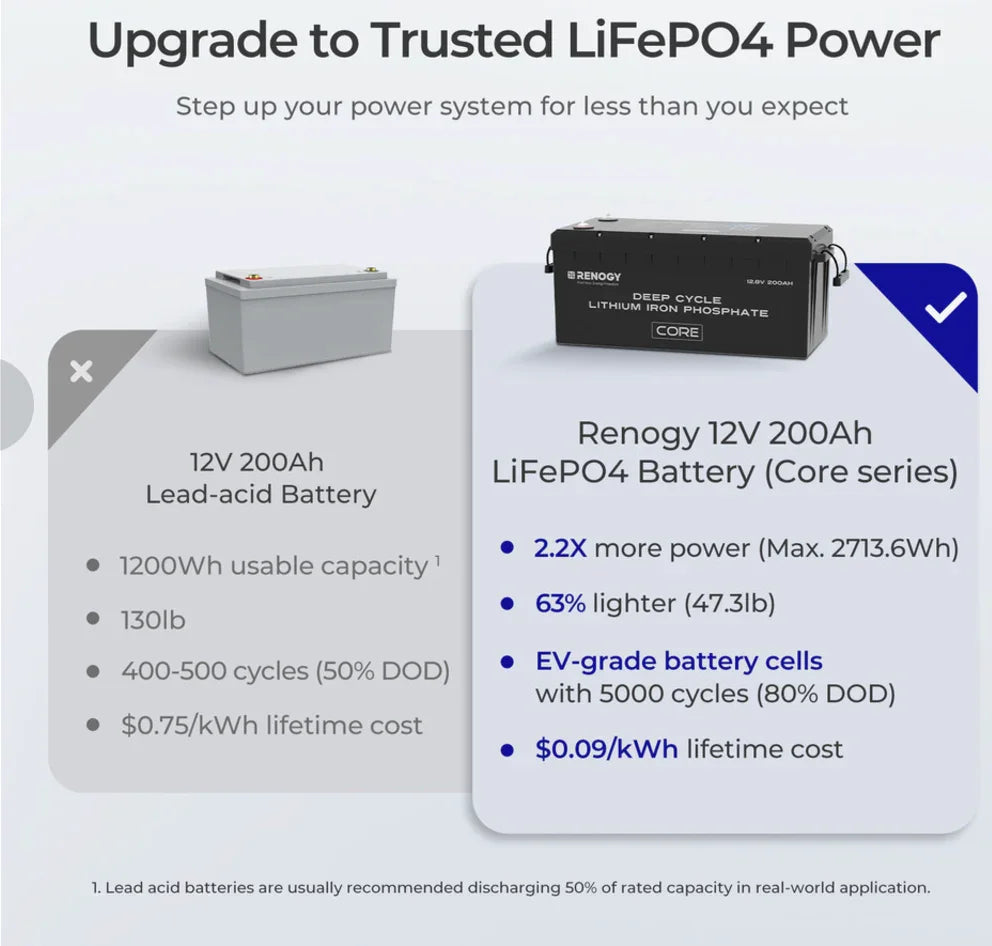

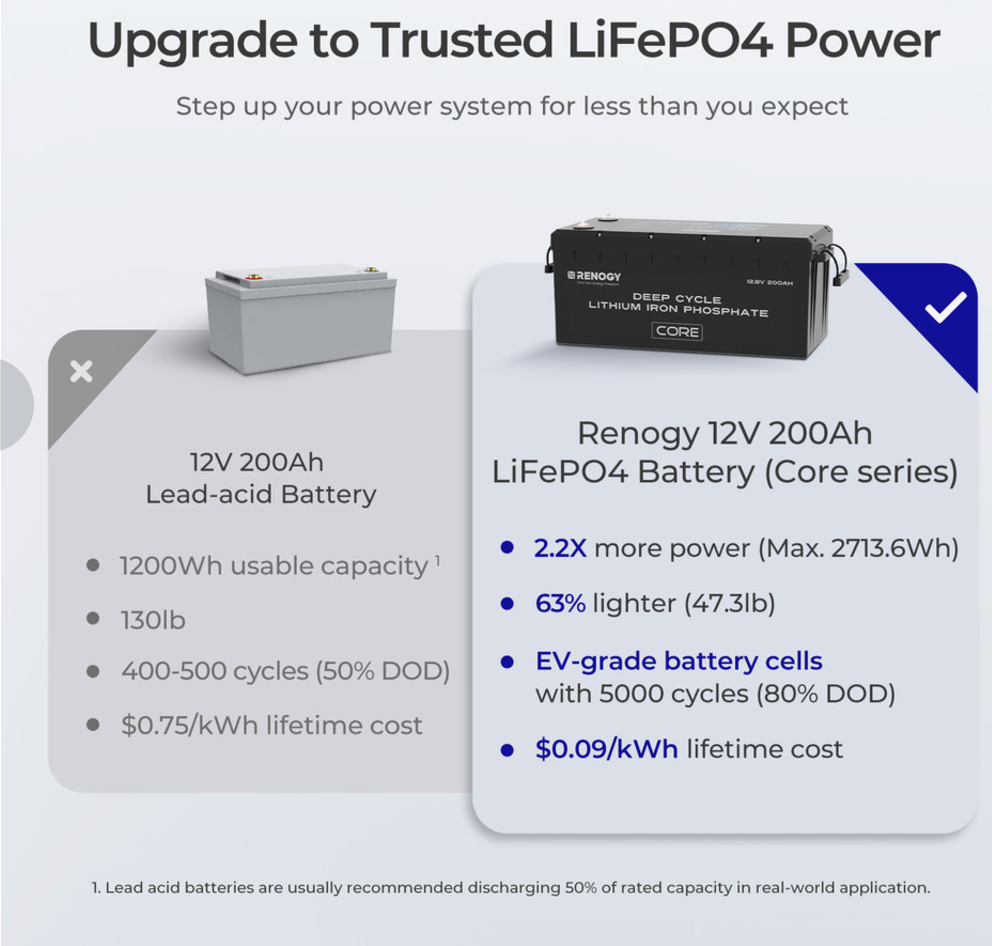

200Ah Core vs. Other LiFePO4

Unparalled performance for demanding energy needs

Max. 6% Positive Tolerance of Capacity

EV-grade Battery Cells

Peace-of-Mind Charging

Protections from Bumps

Extra Juice. More Possibilities.

Renogy 12V 200Ah Core delivers more than you imagine. Get max. 6% more capacity to brace for the unexpected storms, hurricane, wildfire, and other challenges whenever you need.
